Free VFR approach charts (AIP), NOTAMs and weather (METAR/TAF) for Wilhelmshaven "JadeWeserAirport" EDWI - plus aerodrome data and the current AIRAC cycle.
The free German Aeronautical Information Publication AIP is now available as a basic version from Deutsche Flugsicherung (DFS), but without a search function. Our site makes it easier to find airfields, but we do not accept any liability for the accuracy or timeliness of the AIP (Aeronautical Information Publication), as it is not published by us. We only link to the respective approach charts.
Wilhelmshaven "JadeWeserAirport" (EDWI) is an aerodrome near Wilhelmshaven, published in the official Aeronautical Information Publication (AIP). It has 2 runways. AIP:Aero links its official AIP entry together with runway, frequency and current weather information.
AIRAC October 1, 2026
There is an app2drive station directly at this aerodrome.
JadeWeserAirport, Flugplatz 1, Wilhelmshaven / Sande
Availability and prices are shown by app2drive.
We send you a PDF with weather, NOTAMs, runways, frequencies and chart links for up to three aerodromes of your route.
Read automatically from the official AIP page image by text recognition (OCR) and may contain reading errors. Always verify against the current AIP before flight.
1 Cargo-handling facilities OR 2| Fuel/oil types AVGAS 100 LL, Jet A1, Super Plus/ AD100, AD 80, 20W50 3| Fuelling facilities/capacity AVGAS 100 LL: Fuel pumps / 50 0001 Jet A1: Fuel pumps / 50 0001 Super Plus: 10 0001 4] De-icing facilities Snow removal and de-icing fluid for RWY Heated Hangar: O/R 5] Hangar space for visiting aircraft O/R 6| Repair facilities for visiting aircraft W. Tank Tel.: +49 4421 20 10 10 DRF-Maintenance Tel.: +49 4421 29 90 7| Remarks Nil EDWI
1| Hotels Wilhelmshaven 2| Restaurants Airline Bistro, Tel.: +49 4421 20 29 72 | 3| Transportation Taxi, App 2 drive cars 4| Medical facilities . 5| Bank and Post Office Wilhelmshaven or Sande 6] Tourist Office Wilhelmshaven 7| Remarks Nil EDWI
1 AD category for fire fighting 2, 3 or 4 avaiable with 48 HR PPR 2| Rescue equipment CAT3 3| Capability for removal of disabled aircraft - 4| Remarks NIL EDWI
Runway surface condition assessment and reporting and snow plan 1| Type(s) of clearing equipment Available 2| Clearance priorities RWY 02/20, TWY A, Apron 3| Use of material for movement area surface treatment NIL 4| Specially prepared winter runways Not applicable 5| Remarks Nil AMDT 08/24 © DFS Deutsche Flugsicherung GmbH LUFTFAHRTHANDBUCH DEUTSCHLAND AIP GERMANY AD 2 EDWI 1-3 01 OCT 2026 EDWI
Buying or selling an aircraft? Trade:Aero - Europe's largest aircraft marketplace
Browse aircraft for sale in Germany on Trade:Aero - the marketplace for buying and selling aircraft.
Official area forecast for VFR flights in Germany by the German Meteorological Service (DWD), issued several times a day with a forecast in 2-hour steps.
Current GAFOR rating per period: see the official source below.
Area 1 · Ostfriesland · GAFOR area Nord
Deutscher Wetterdienst: Die auf dieser Internetseite bereitgestellten Flugwetterprodukte des DWD dürfen ausschließlich zur individuellen meteorologischen Flugvorbereitung genutzt werden.
GAFOR is an advisory forecast - always check the official source before flight.
Registration may be required

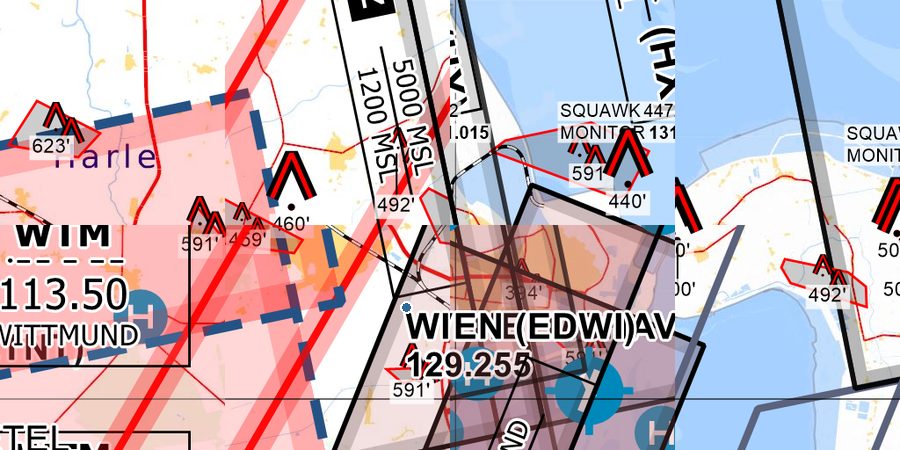

Open Flight Maps VFR chart (PDF)
Complementary VFR chart, not the official AIP.
· OpenStreetMap
Open now - closes 17:14Zper AIP AD 2.3
Confirm via NOTAM / current AIP before flight.
Frequencies read automatically from the AIP by text recognition - may contain read errors. Verify against the current AIP before flight.
1 | Designation, surface and strength of aprons PCN 40; ASPH 2| Designation, width, surface and strength of taxiways TWY A, B, C north: 15 m; ASPH; PCN 40 TWY C south, D: [...] 3] Altimeter checkpoint location and elevation - 4| VOR checkpoints NIL 5| INS checkpoints NIL 6| Remarks NIL EDWI
1| Use of aircraft stand ID signs, TWY guide lines and visual docking/parking guidance system at aircraft stands NIL 2| RWY and TWY markings and LGT White: RCL 02/20 Yellow: TWY centre and holding lines 3| Stop bars 4| Remarks TWY signs available EDWI
Refer to AD 2 EDWI 2-11 AERODROME OBSTACLE CHART - ICAO TYPE A RWY 02/20 EDWI
RWY centre line LGT | RWY edge APCHLGT LEN, LGT RWY end type THR LGT VASIS spacing LEN Spacing, LGT SWY LGT RWY LEN colour (MEHT) TDZLGT colour, colour colour LEN (M) Designator INTST WBAR PAPI LEN INTST INTST WBAR colour 1 2 3 4 5 6 7 8 9 LIH G 3.0° Ww R 02 Sequence flash - - - | available LIH 29.26 ft LIH LIH LIH G 3.0° Ww R 20 Sequence flash - . - | ‘available LIH 29.49 ft LIH LIH 16 - - - - - - - - 34 - - - - - - - - Remarks 10 02 Nil 20 Nil 16 Nil 34 Nil EDWI
1 | ABN/IBN location, characteristics and hours of operation ABN white/white on TWR 2 | LOI location and LGT See chart AD 2 EDWI 2-5 Anemometer location and LGT 3 | TWY edge and centre line LGT TWY edge lights of TWYs: BLIL 4 | Secondary power supply including switch-over time Available/MAX 15 SEC 5 | Remarks Nil EDWI
1 | Coordinates TLOF or THR of FATO NIL Geoid undulation TLOF and/or FATO elevation mift NIL 3 | TLOF and FATO area dimensions, surface type, bearing NIL strength and marking 4 | True BRG of FATO NIL 5 | Declared distance available NIL 6 | APP and FATO lighting NIL 7 | Remarks NIL © DFS Deutsche Flugsicherung GmbH AMDT 06/22 LUFTFAHRTHANDBUCH DEUTSCHLAND AD 2 EDWI 1-7 AIP GERMANY 17 APR 2025 AD 2 EDWI 2-5 AERODROME CHART - ICAO AD 2 EDWI 2-11 AERODROME OBSTACLE CHART - ICAO TYPE A RWY 02/20 AD 2 EDWI 4-6-1 INSTRUMENT APPROACH CHART - ICAO RNP RWY 02 AD 2 EDWI 4-6-4 INSTRUMENT APPROACH CHART - ICAO RNP RWY 20 AD 2 EDWI 5-7-1 STANDARD DEPARTURE CHART - INSTRUMENT RNAV RWY 02/20 EDWI
Visual segment surface (VSS) penetration NIL © DFS Deutsche Flugsicherung GmbH AMDT 04/25
PPR-/Service-Request über das aerops-Self-Service-Portal.
On AIP:Aero
Ratings by Google
The authority publishes no separate chart PDF for this aerodrome. The AIP button above opens its official AIP entry.
According to the AIP, Wilhelmshaven "JadeWeserAirport" EDWI has: 02/20 4787 × 98 ft (1459 × 30 m) · 16/34 2018 × 49 ft (615 × 15 m). Lengths in feet, metres in brackets.
Aerodrome dataThe aerodrome elevation of Wilhelmshaven "JadeWeserAirport" EDWI is 19 ft (6 m) above MSL.
incl. 19% VAT
Example price, may vary - calculate the exact amount with the aerodrome.
Frame: 08:40 UTC
Weather radar data © RainViewer · © OpenFreeMap · © OpenStreetMap
Radio frequencies of Wilhelmshaven "JadeWeserAirport" EDWI: APP 124.800 · APP 131.015 · AFIS 129.255. Check them against the current AIP and the NOTAMs before you fly.
Aerodrome dataFuel reported at Wilhelmshaven "JadeWeserAirport" EDWI: Super PLUS, AVGAS, Jet A-1. Confirm availability before you fly.
Aerodrome dataLanding fees at Wilhelmshaven "JadeWeserAirport" EDWI start at 10.71 EUR (<= 1.2 t MTOW). An indicative figure: the exact price depends on the aircraft and options, so confirm it with the aerodrome.
Aerodrome dataScan time: 08:20 UTC
NOTAMs via the FAA, informational only - check the official pre-flight briefing.
C3634/26 NOTAMR C2189/26 Q) EDWW/QPOCH/I /NBO/A /000/999/5330N00803E005 A) EDWI B) 2608140805 C) 2611122359EST E) OCA(H) VALUES RAISED AS FOLLOWS: LPV RWY 02: A 284 (271), B 296 (283) FT. DUE TO INADEQUATE PROTECTION PROVIDED IN THE MISSED APPROACH SEGMENT FOR SOME NAVIGATION SYSTEMS AUTHORISED FOR LPV OPERATIONS.
